Motoscope Classic Speedo Zwart Geanodiseerd.

The motoscope classic speedo from motogadget is an analogue speedometer with many additional digital features in a classic round casing. A white dial and a red indicator driven by a precision stepper motor comprise the analogue rev counter. A LC display and four indicator LEDs indicate the additional features accurately and reliably.

This compact instrument creates new possibilities in vehicle design. The design goes well with every type of mod or original machine - regardless if real classic, youngtimer, custom or sports bike. The motoscope classic is equally suited for sports or kit cars.
High end materials, assembly by hand and our scrupulous quality control provide the highest possible quality in functionality and looks.

The casing
The high quality aluminium casing is turned and machined from the block by CNC technology. The surface is brushed first and later anodized in black or natural aluminium. The casing is 100% water-tight. The viewing glass is made from scratch-proof special plastic. The widely used 80-mm-dimensions allow for easy replacement of the original instruments.

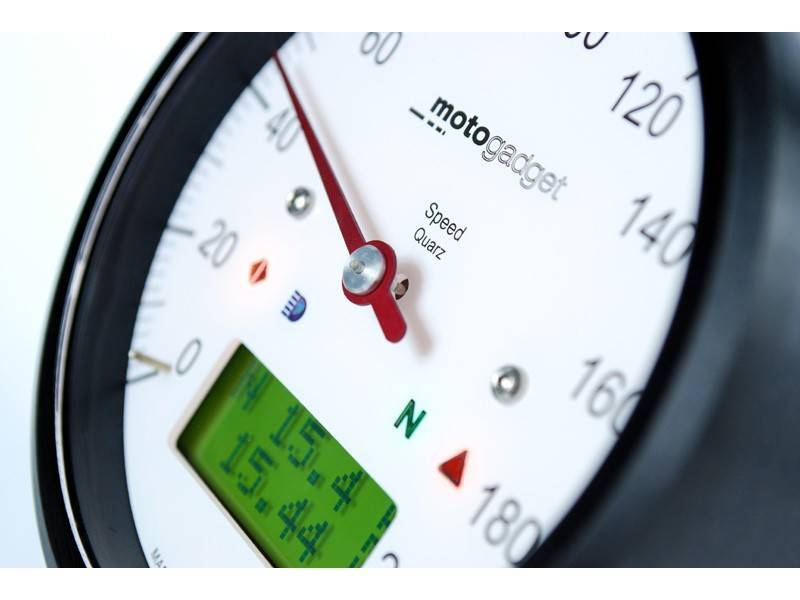

Analogue dial with indicator and the LC display
The readability of the speed is optimal due to the red indicator on the white dial. The innovative background illumination achieves maximum usage of the dial area.
The readability and illumination of the LC display remains outstanding, even in cases of direct sunlight.
Four ultra bright indicator LEDs complete the instrument. The red LED acts as warning light when reaching the set threshold for rpm, temperatures (min./max.), pressure readings (min./max.), vehicle voltage and the oil pressure switch or similar connected transmitting devices. Different warnings are easily distinguishable due to different blinking patterns or continuous lighting.

Operation
Display pages of the LCD display are swapped via the menu and headlight flasher push-buttons. Different measurement readings can be displayed if needed by the push of a button. Default settings or saved values will of course be preserved in the memory even if the power is cut.
