€264,95
€279,95
✔ Shipped in 10-15 business days
Description

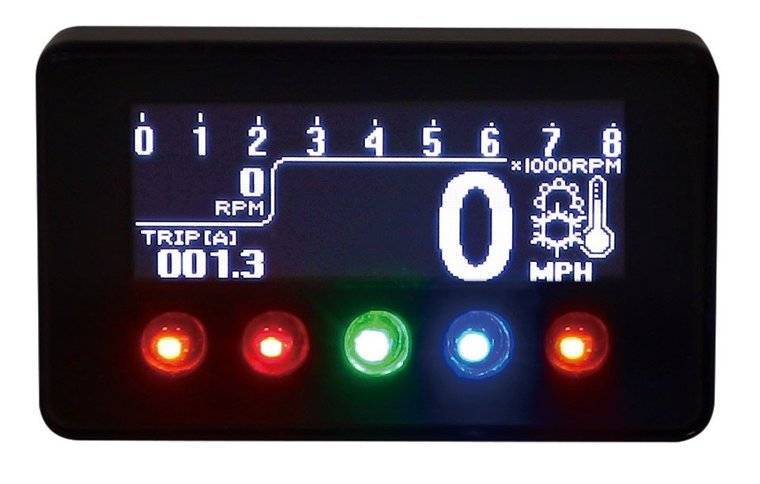

Check this awesome DB1 OLED Digital Multifunction Cockpit out. This is all you need and the best of the best when it comes to KOSO Gauges!

Probably the smallest multifunctional instrument on the market. It features numerous cockpit functions and is suitable for both two- and four-stroke motorbike engines, and also quads and ATVs with a 12 V DC electrical system and battery. It is also compatible with different ignition systems and comes with type approval, so does not have to be registered in the vehicle documents.

Features:

  • Digital speedo up to 360 km/h

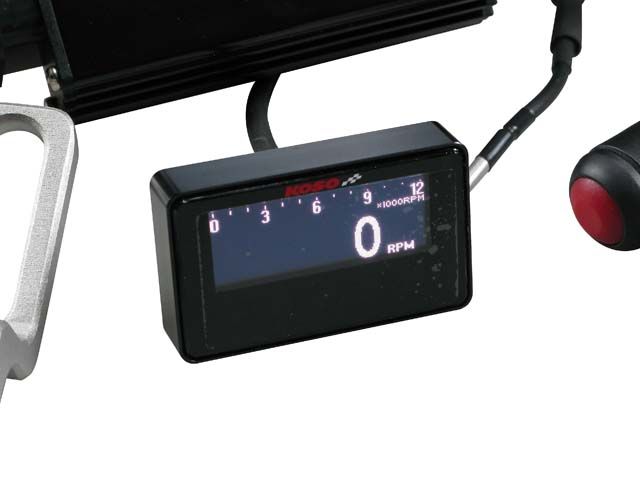

  • Rev counter for up to 20,000 rpm (digital), or up to 16,000 rpm (bar display)
  • Odometer (total mileage) for up to 99,999 km
  • Two trip counters, each up to 999.9 km
  • Indicator lights for neutral, high beam, turn signals, oil pressure
  • Gear-shift indicator can be set in increments of 100
  • Speeding warning light can be set in steps of 1 km/h
  • Three temperature displays for water, oil and outside temperature (0°C to 250°C and -20°C to 60°C) with a warning light for adjustable maximum temperature (for compatible adapters, see www.louis.de)
  • Fuel level indicator via 100, 250, 510 or 1200 ohm sensor, if provided for on your vehicle

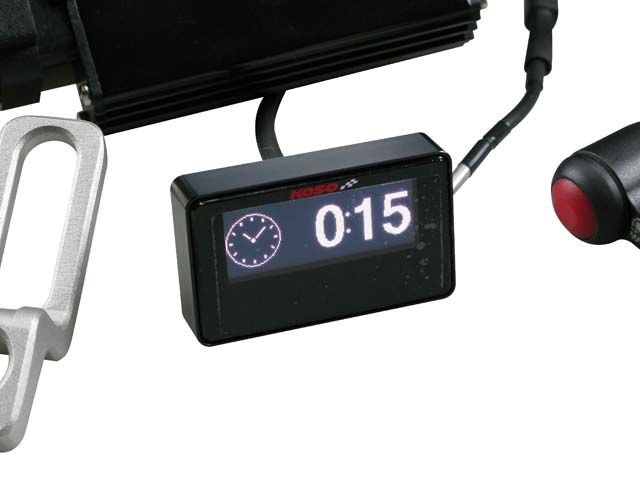

  • 24-hour clock
  • Wheel sizes from 300 mm to 2,500 mm can be programmed in 1 mm increments
  • OLED display with colour illumination and external button
  • Dimensions: Housing (H x W x D) approx. 26 x 45 x 10 mm, control unit (H x W x D) approx. 50 x 77 x 23 mm

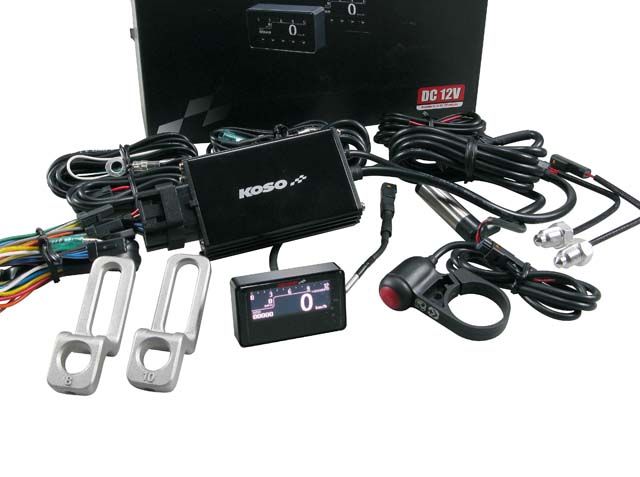

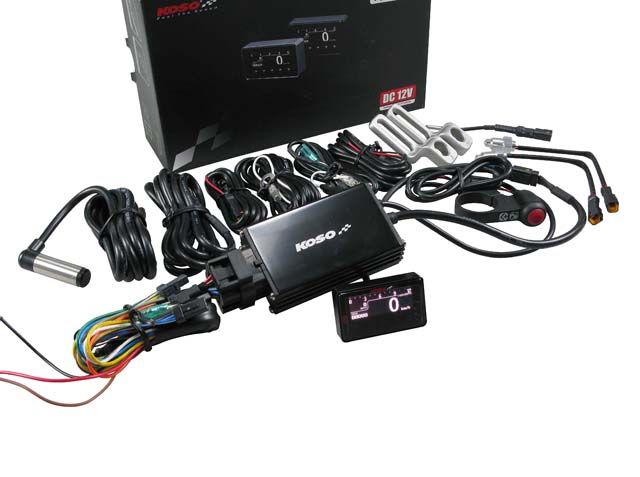

  • Includes fittings, adhesive pad, pulse transmitter, control unit and button plus with sturdy holder and also installation and operating instructions in German. Note: Adapters may be necessary in order to correctly display oil and/or water temperature.
