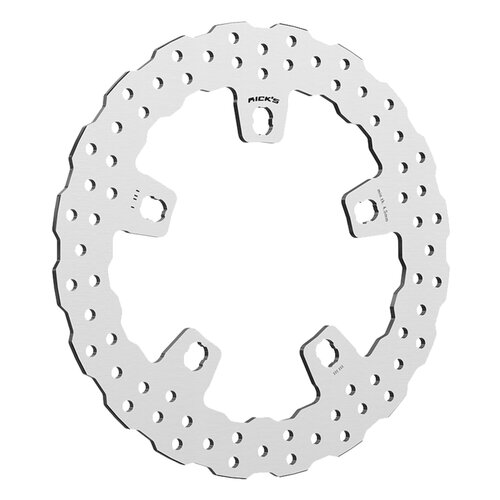

Rick's Motorcycles | Front Wave Brake Disc 300 mm 5-Hole

This is a front brake disc, also referred to as a brake rotor, with an outer diameter of 11.8 inch / 300 mm. It is a floating design with an open center and a 6.7 inch bolt circle diameter, using a 5-bolt, cross cut mount pattern (mount style C) intended for cast wheels. The disc is supplied with caliper adapters and is optimized for use with OEM radial brake calipers.

Key Features

• OEM quality manufacturing
• Perforated braking surface
• Extreme heat resistance for stable braking performance
• Increased brake grip for high responsiveness
• High-strength stainless steel inner part
• Black powder coated inner carrier
• Compatible with all common brake pads
• Floating rotor design
• Laser-cut precision manufacturing
• Cross-ground for a flat surface
• Heat-treated stainless steel alloy
• Includes caliper adapters

Specifications

• Outer diameter: 11.8 in / 300 mm
• Bolt circle diameter: 6.7 in
• Bolt holes: 5
• Mount style: C (cross cut bolt holes)
• Center type: Open center
• Material: Stainless steel alloy, heat treated
• Inner carrier: Black powder coated
• Caliper compatibility: OEM radial brake calipers
• Includes: Caliper adapters

Usage & Care Tips

• Approval status varies by bike model and year; check with your local MCS dealer or the MCS sales department for the exact approval type and validity based on the test report

Fitment

• HD: FLT/Touring 2014-2025 (excl. 2023-2025 FLHXSE, 2023-2025 FLTRXSE, 2024-2025 FLTRXSTSE, 2024-2025 FLHX, 2025 FLHXU, 2024-2025 FLTRX)
• HD: Trike 2014-2026
• Requires stock or custom open center cast wheels
