Rick's Motorcycles | Rear Fender for 240mm Tire, Steel, with LED Lighting

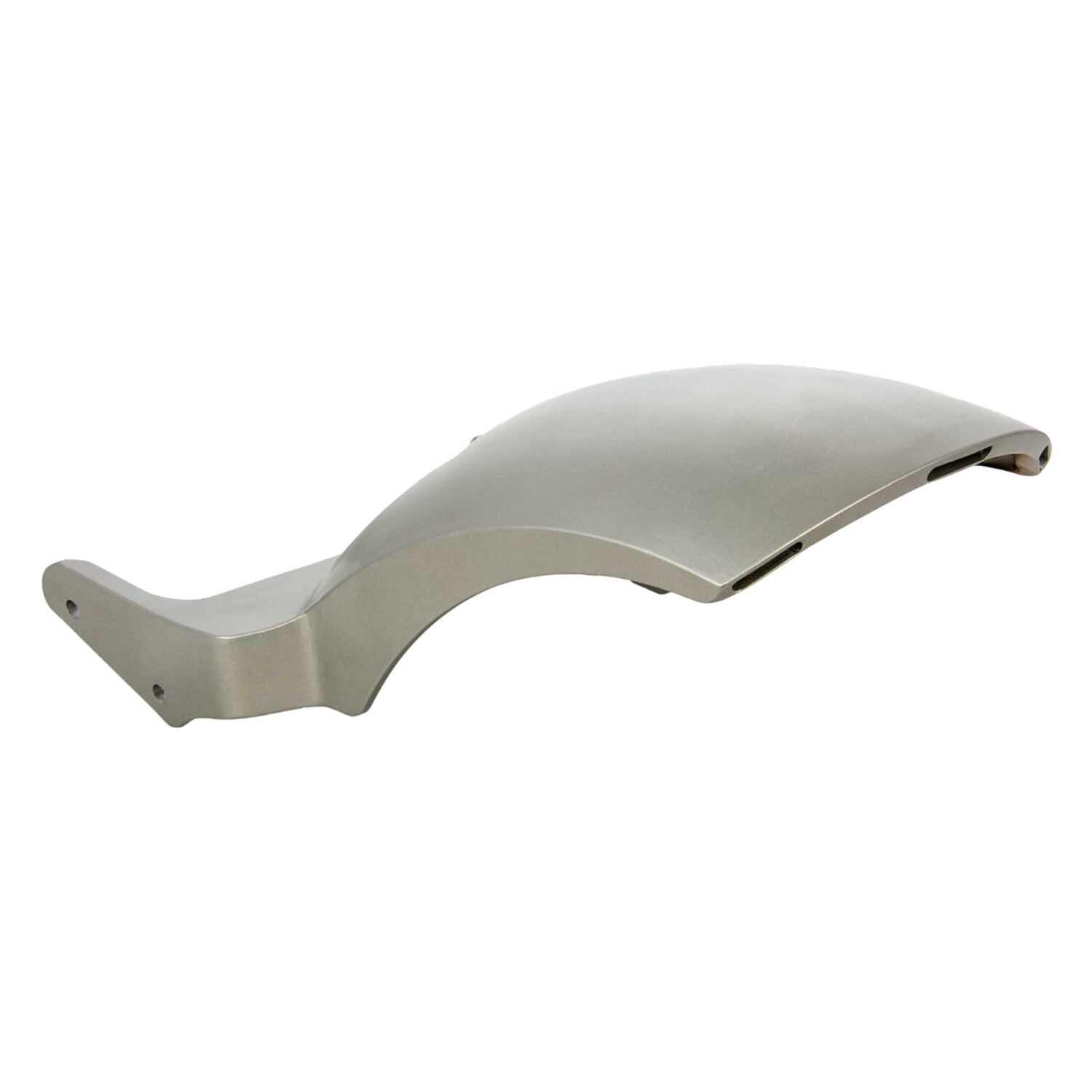

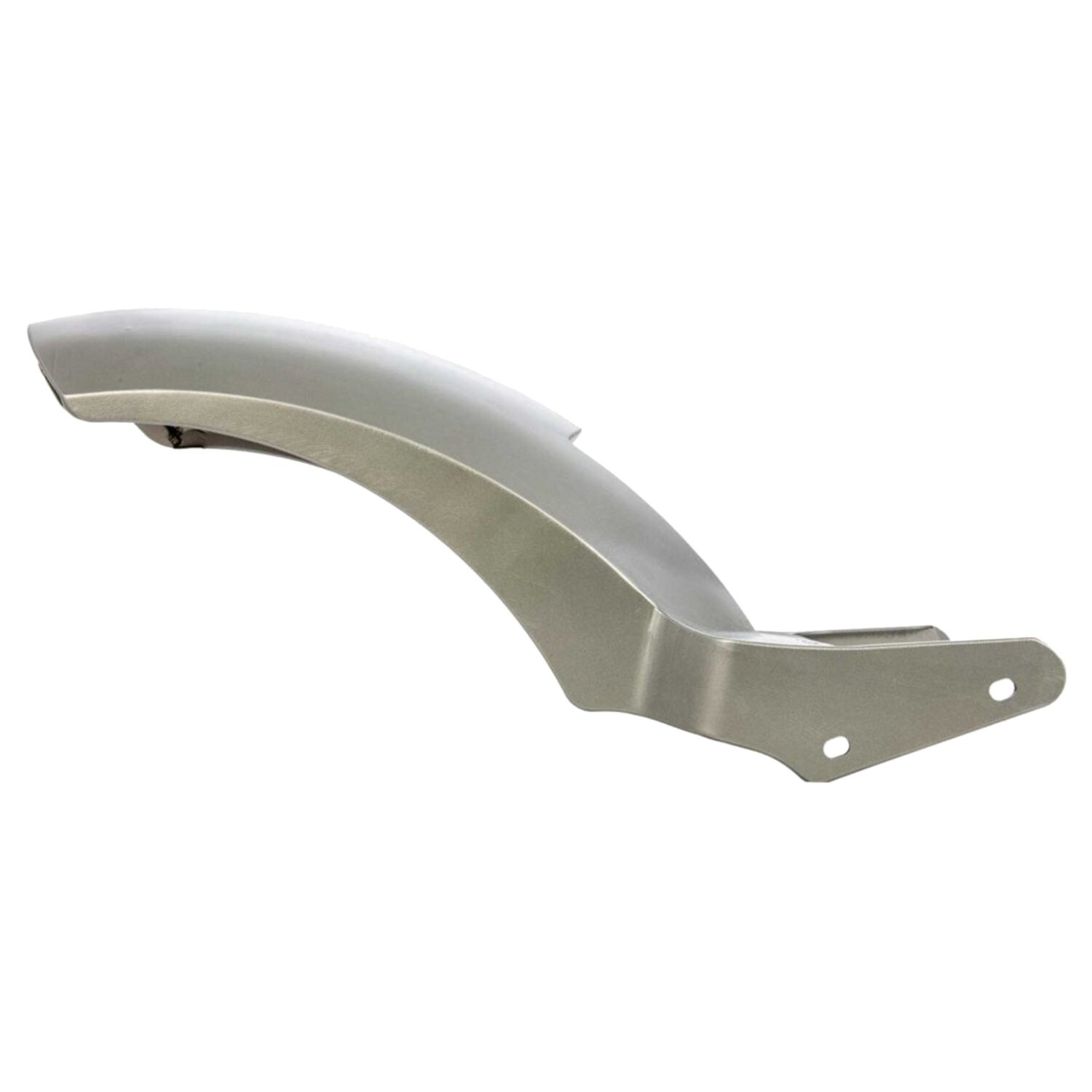

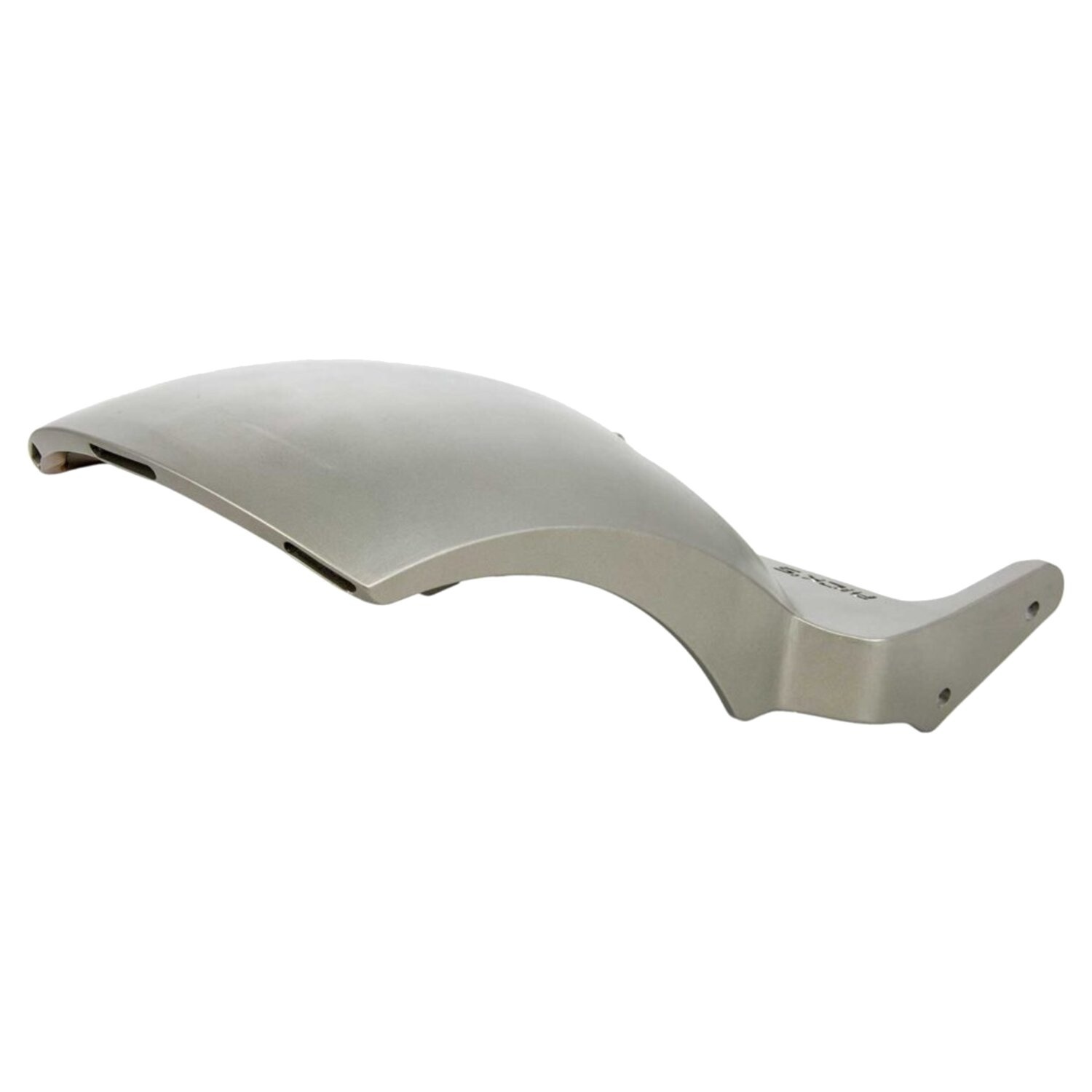

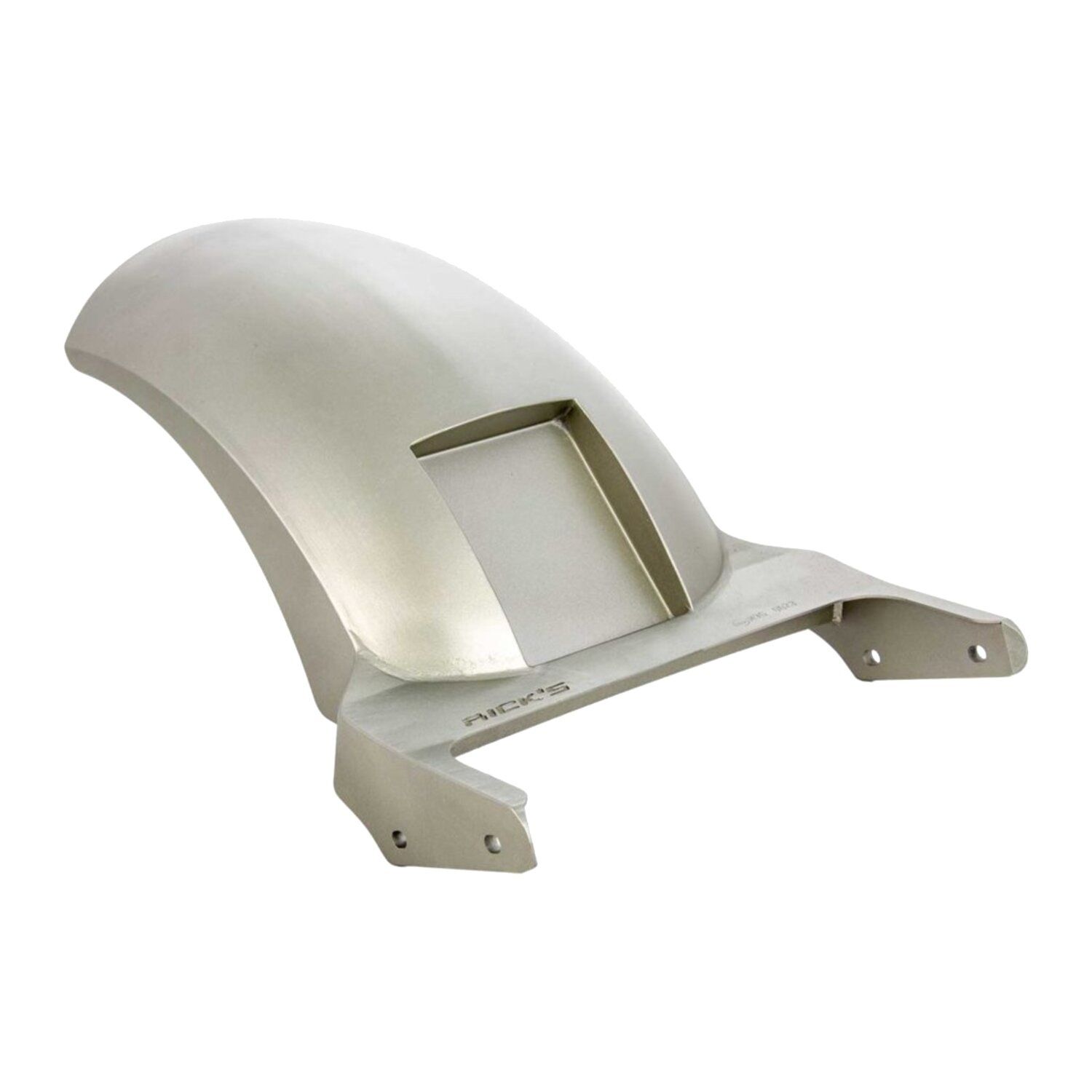

This rear fender for a 240mm tire is built for 8 inch wide wheels fitted with an OEM 240 tire. Made by Rick's Motorcycles from unpainted raw steel, it comes with integrated housings for LED turn signals and a taillight already fitted, and is rated for carrying a passenger.

Key Features

• Integrated 10mm fender struts
• Fabricated from unpainted raw 2mm thick steel
• Deep-drawn and laser-cut construction
• Exceptional torsion stability
• Brackets and fender struts TIG welded on welding rigs for best fit

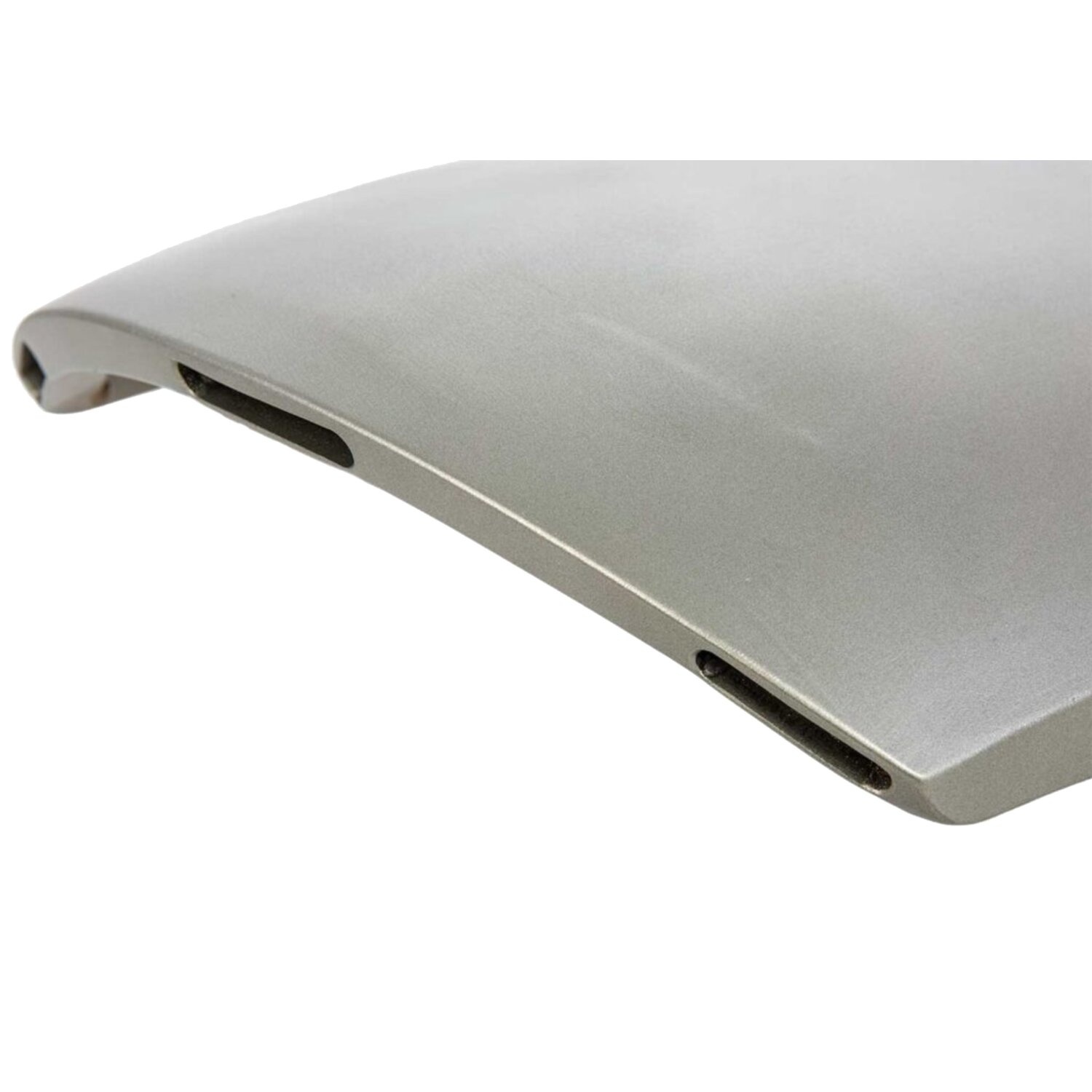

• Integrated weld-in housings for LED turn signals and taillight
• Includes 943260 Mini LED center taillight
• Includes 943262 Shorty LED turn signals
• Includes mounting hardware
• Rated for passenger use

Specifications

• Material: 2mm raw unpainted steel
• Wheel compatibility: 8 inch wide wheel with OEM 240 tire
• Fender strut diameter: 10mm
• Taillight insert dimensions: 53mm x 8mm (inner)
• Turn signal insert dimensions: 41mm x 8mm (inner), each
• Included taillight: 943260 Mini LED center taillight
• Included turn signals: 943262 Shorty LED turn signals
• Base plate: not included
• Tank cover: not included

Usage & Care Tips

• This fender is sold with approval; check with your local MCS dealer or the MCS sales department for the exact type of approval and its validity for your specific bike model and year, as referenced on the test report
• Base plate and tank cover are not included and must be sourced separately

Fitment

• HD: Softail models with wide frame and 240 tire, 2018-2026
• HD: Fat Boy, 2018-2026
• HD: Breakout, 2018-2026
• HD: FXDRS, 2018-2019
