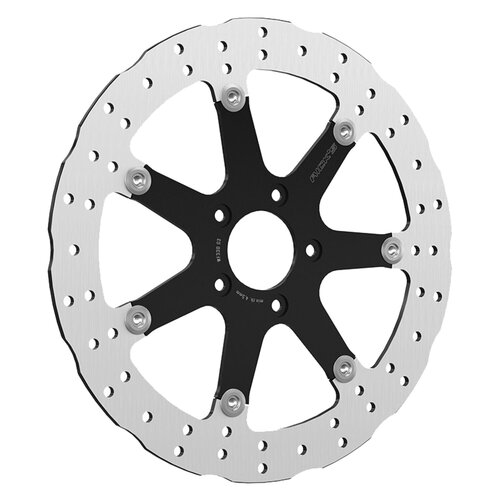

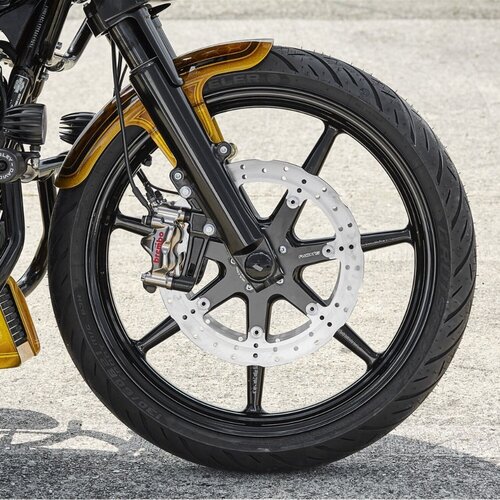

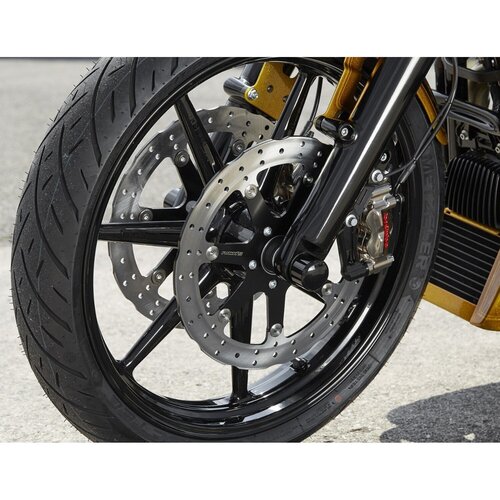

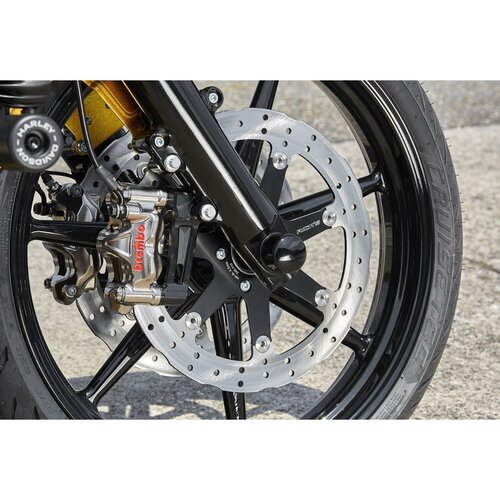

Rick's Motorcycles | Front Wave Brake Disc Seven Sins 11.5" Floating

This front wave brake disc, also referred to as a brake rotor, is part of the Seven Sins line and measures 11.5" (292mm) in diameter in a floating design. It is manufactured from a special stainless steel alloy and heat treated, with a laser-cut profile and a cross-ground surface for a flat finish. The disc is optimized for use with OEM radial calipers.

Key Features

• Manufactured in OEM quality
• Floating rotor construction
• Perforated braking surface for reduced noise and good responsiveness
• Extremely heat resistant, offering stable braking performance under all conditions
• High responsiveness due to increased brake grip
• Optimized for OEM, accessory and radial calipers
• High-strength stainless steel inner part for increased durability with minimized distortion and fading
• Suitable for all common brake pads
• Laser-cut for precision
• Cross-ground for a perfectly flat surface

Specifications

• Diameter: 11.5" (292mm)
• Inner diameter: 56.3mm
• Mounting hole diameter: 8.7mm (5/16") counterbored, with 5/16" inner sleeves fitted
• Mounting hole diameter without reducer sleeves: 3/8" (for rear use)
• Bolt circle: 3.25"
• Mount style: B
• Material: special stainless steel alloy, heat treated
• OEM replacement reference: 44156-00, 44136-00

Usage & Care Tips

• For use on pre-2000 models, fit a 56.3mm to 50mm I.D. reduction ring
• Reducer sleeves can be removed to convert mounting holes to 3/8" for rear use
• This disc is supplied with approval; check with your local MCS dealer or the MCS sales department for the exact type and validity of approval for your specific bike model and year

Fitment

• HD: Various models 2000-2026 with 3.25" bolt circle mount
