Rick's Motorcycles | Wave Front Brake Disc 12.6" Stainless Steel

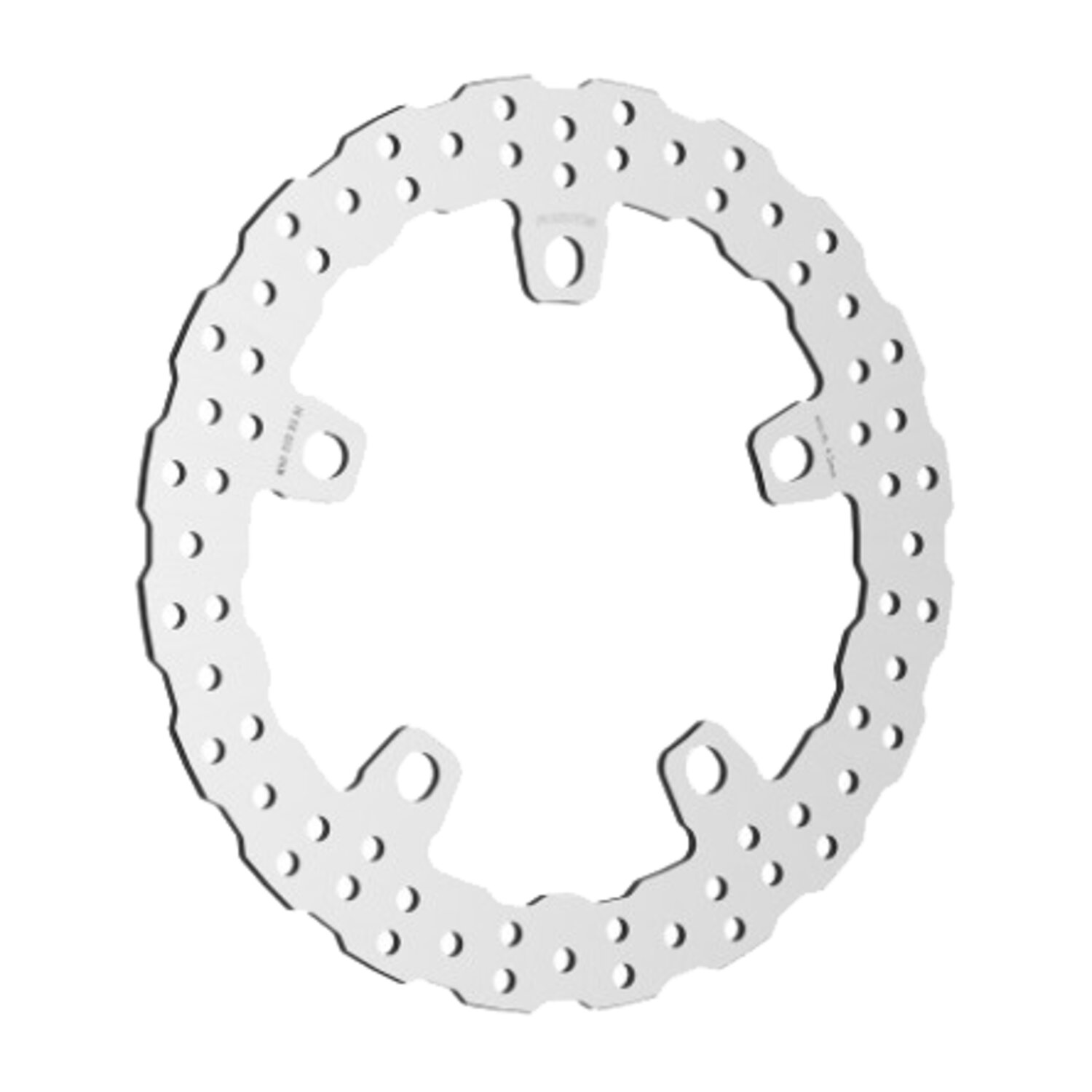

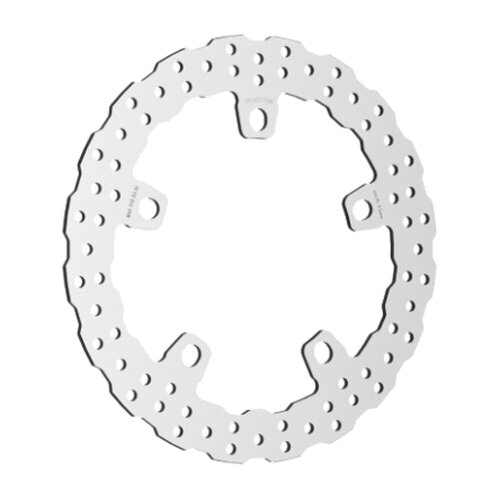

Looking for a replacement front brake disc that keeps its shape and bite under hard use? This Wave front brake disc measures 12.6" (320mm) in diameter and uses a floating design with an open center. Also referred to as a brake rotor, it is manufactured from a special stainless steel alloy that is heat treated, giving it strong braking capability combined with high wear resistance. The braking surface is laser-cut for precise shaping and cross-ground for a perfectly flat finish. The original OEM brake rotor bolts must be reused when fitting this disc.

Key Features

• OEM quality manufacturing
• Floating rotor design
• Open center design
• Perforated braking surface
• Reduced braking noise
• High heat resistance for stable braking performance
• Increased brake grip
• High-strength stainless steel inner part
• Minimized distortion and fading
• Black powder coated inner carrier
• Laser-cut, cross-ground surface
• Compatible with all common brake pads

Specifications

• Diameter: 12.6" / 320mm
• Design: Floating, open center
• Mounting holes: 5 x 15mm x 15.7mm elongated
• Hole-to-hole distance: 119mm
• Mount style: L
• Material: Stainless steel alloy, heat treated
• Inner carrier finish: Black powder coated
• OEM replacement reference: 41500158A

Usage & Care Tips

• Reuse the original OEM brake rotor bolts when installing this disc.
• Approval status depends on bike model and year; check with your local MCS dealer or the MCS sales department for the exact approval and its validity for your motorcycle.

Fitment

• HD: 2024-2026 FLHX, 2025 FLHXU, 2024-2026 FLTRX, 2024 RA1250, 2024-2026 RA1250S (front, stock cast wheels)
