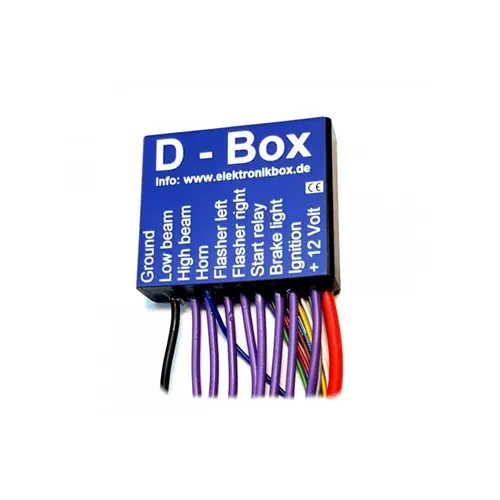

Key functions & features

• Integrated flasher relay (indicator control via buttons or switches)

• Dashboard indicator output for a cockpit tell-tale light

• Side-stand and neutral switch inputs (when safety options are enabled)

• Configurable indicator functions: auto-cancel, hazard mode, adjustable “position light” mode

• Low beam / high beam control (button or switch)

• Starter relay control

• Horn control

• Brake light control

• Aux outputs for tail light, license plate light and speedometer power

• Status LEDs on the outputs for quick visual diagnostics

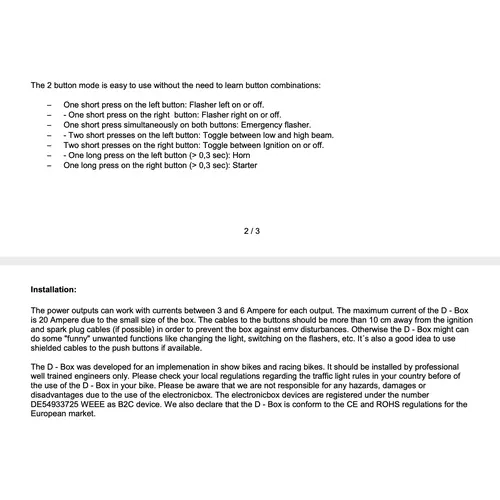

Simple two-button operation

The D-Box can be operated with only two push-buttons - no complicated combinations required:

• Indicators: short press activates the selected side; another short press switches them off

• Horn: long press (about 0.3 seconds or longer) on the left button

• Starter: long press (about 0.3 seconds or longer) on the right button

• High/low beam: two short presses on the left button toggles beam

• Ignition: two short presses on the right button switches ignition on/off

Protection & reliability

The power outputs are short-circuit protected and include an implemented
self-reset function to improve reliability and reduce downtime when troubleshooting.

Compatibility note (Harley-Davidson)

For Harley-Davidson bikes, the D-Box can be used in combination with a TSM/TSSM module by wiring
the left and right outputs of the D-Box to the button inputs of the TSM/TSSM module. Depending on the setup, the HD alarm system can still be used.

Technical specifications

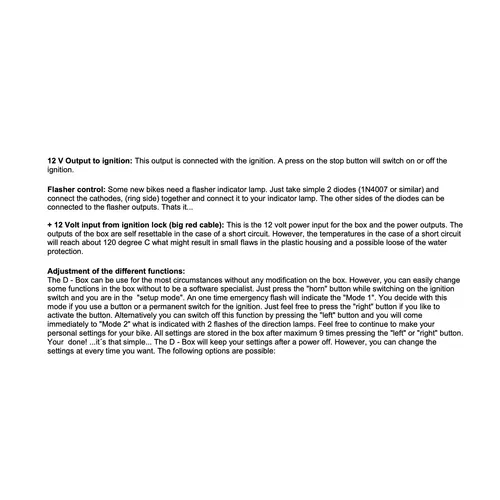

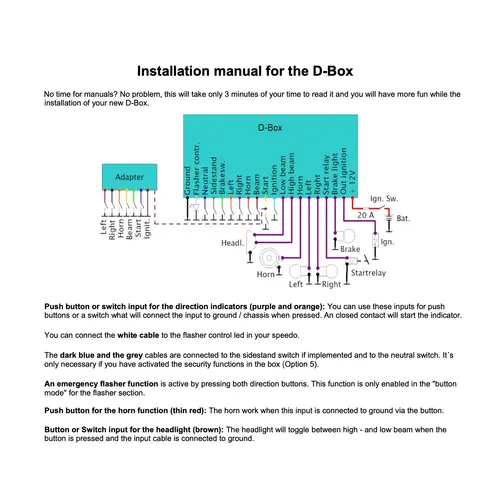

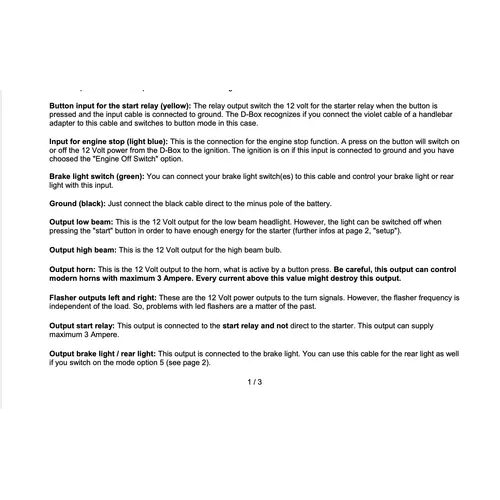

Manual

Looking for a compact motorcycle wiring control box to manage indicators, lighting, horn and
starter from buttons or switches? The D-Box Version D is a practical solution for streamlined
wiring and a clean cockpit layout.
