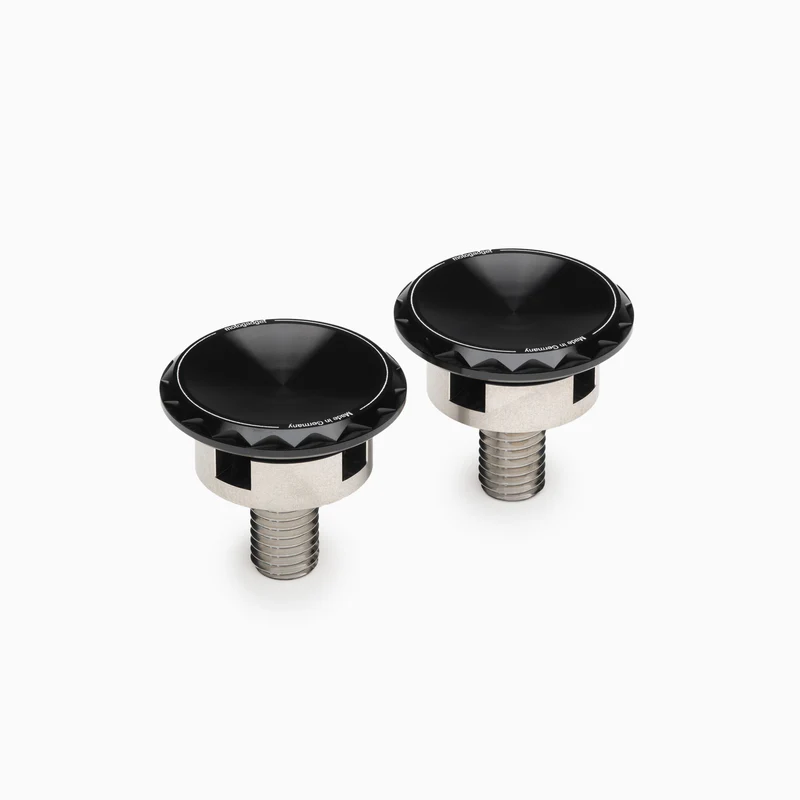

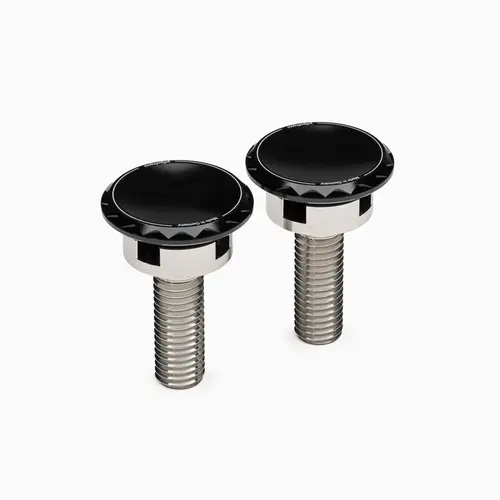

Moto gadget adapter for mo.view bar BMW

With the mo.view handlebar adapter BMW cap, all mo.view bar-end mirrors can be mounted on BMW handlebars with M12 thread, without moving the handles and controls on the handlebar.
It creates a clamping surface for the bar end mirror outside the steerer tube. Whether mo.view blade, mo.view spy, mo.view flight, mo.view cafe, mo.view road, mo.view pace, mo.view cruise or mo.view street.

It is CNC machined from stainless steel and billet aluminum and the aluminum cap is anodized black. The screw cap is concave and decorated with a crown on the outside.

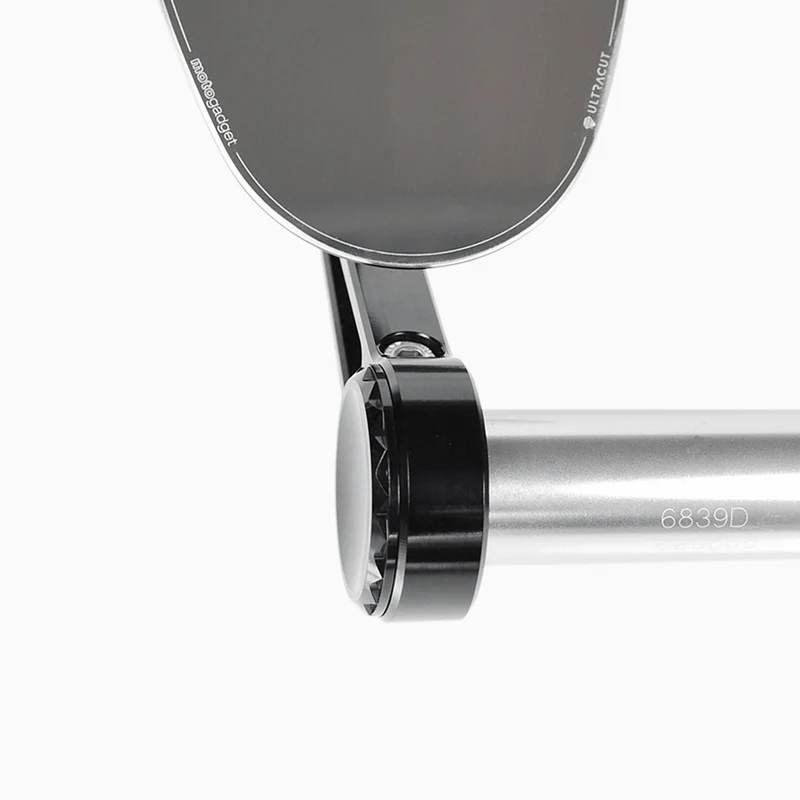

Installation in the handlebar end is done by screwing the M12 thread into the handlebar. Then the bar-end mirror is clamped onto the adapter. The screw cap is then reattached to the adapter.

The mo.view bar adapter BMW cap comes with two threaded pieces for the left and right side of the handlebars. They perfectly match our grip mo.grip.

Mounting is done directly in the thread M12 of the handlebar.

Dimensions

Fits all 22 mm, 7/8 and 1 inch handlebars with a free inner diameter of 12 to 21 mm
Total length: approx. 47 mm
Width of clamping surface for mirrors: 8 mm, fits all mo.view bar-end mirrors
Clamping surface diameter: 1 inch, fits all mo.view bar-end mirrors
Weight (1 piece): 50 g

Scope of supply
2 x mo.view bar adapter BMW cap, manual
