Rick's Motorcycles | Rear Wave Brake Disc Seven Sins 11.5"

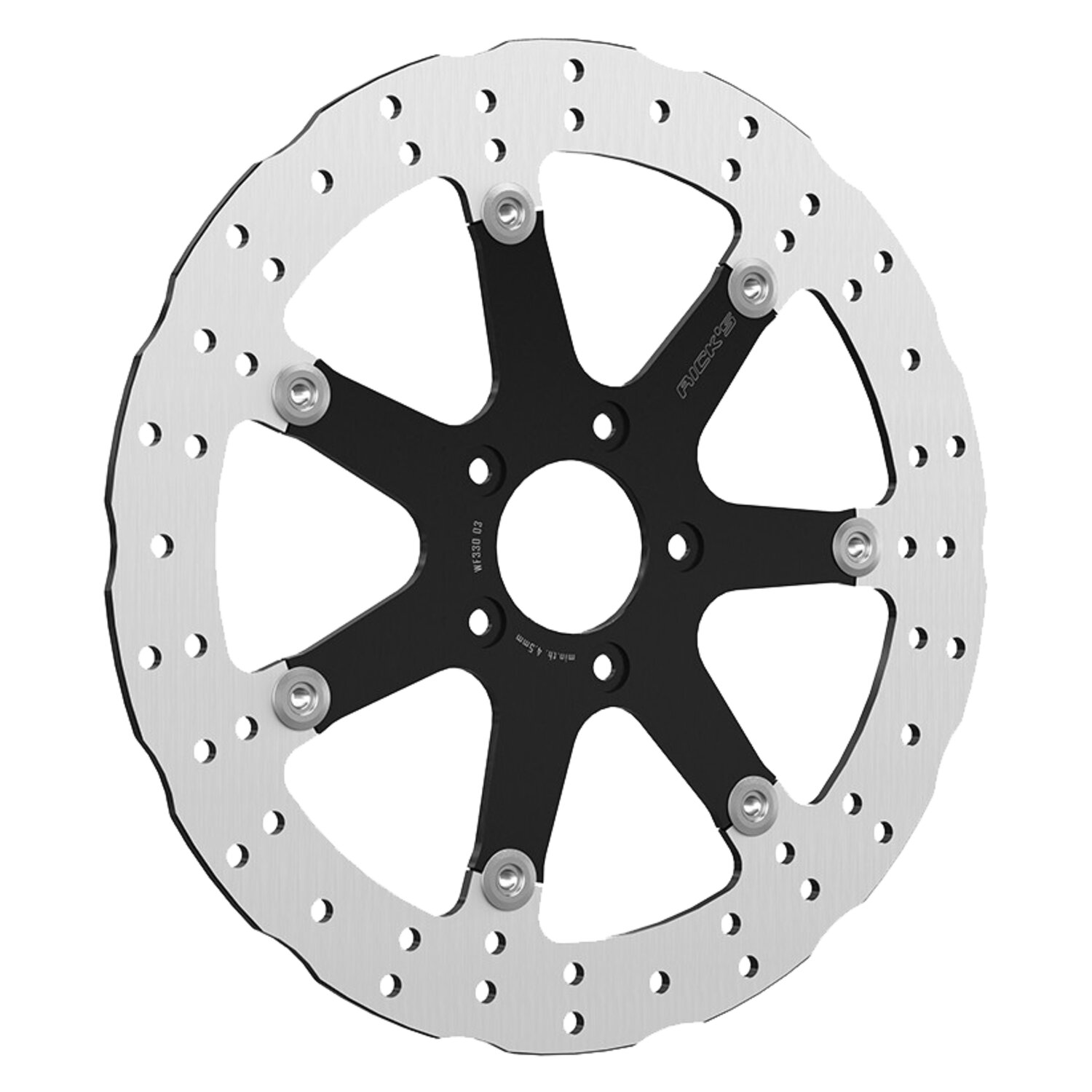

This rear Wave brake disc from the Seven Sins series is a floating brake rotor measuring 11.5" (292 mm) in diameter, manufactured as a replacement for OEM reference 41797-00. It has a 56.3 mm inner diameter, 10 mm (3/8") counterbored mounting holes on a 3.25" bolt circle, and a type 'B' mounting style. The rotor is made from a special stainless steel alloy that is heat treated, then laser-cut and cross-ground for a precisely flat braking surface.

Key Features

• OEM quality manufacturing
• Perforated braking surface for reduced noise and good responsiveness
• Extremely heat resistant for stable braking performance under all conditions
• High responsiveness due to increased brake grip
• Optimized for OEM, accessory and radial calipers
• High-strength stainless steel inner part for increased durability with minimized distortion and fading
• Suitable for all common brake pads
• Black powder coated carrier

Specifications

• Diameter: 11.5" (292 mm)
• Type: Floating
• Inner diameter: 56.3 mm
• Mounting holes: 10 mm (3/8") counterbored
• Bolt circle: 3.25"
• Mount style: B
• Material: Stainless steel alloy, heat treated
• Surface finish: Laser-cut, cross-ground
• Carrier finish: Black powder coated
• OEM reference: 41797-00

Usage & Care Tips

• Approval applies to this disc; check with your local MCS dealer or the MCS sales department for the exact type of approval and its validity for your specific bike model and year, as confirmed by the test report

Fitment

• HD: Various rear models with 3.25" bolt circle diameter, 2000-2025
