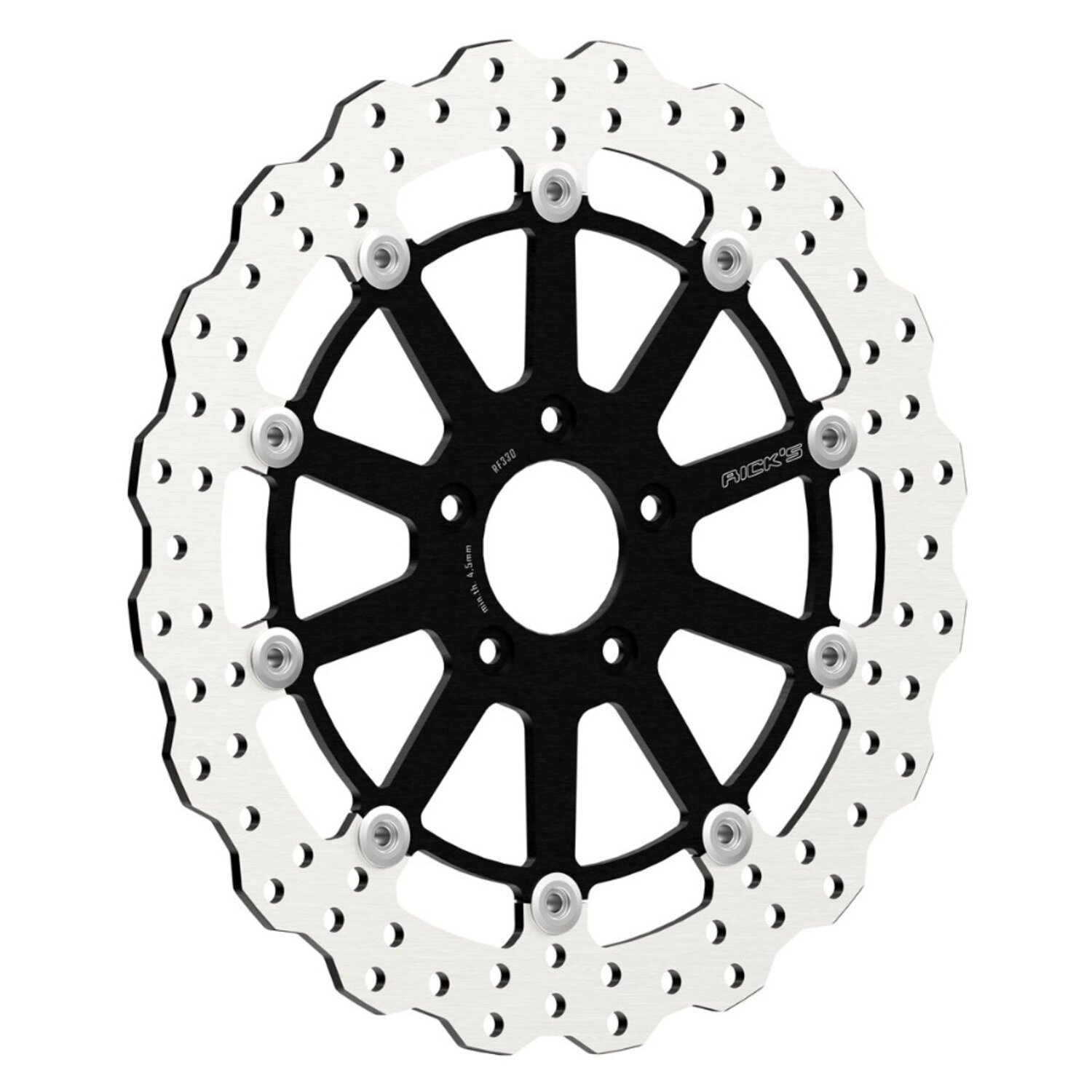

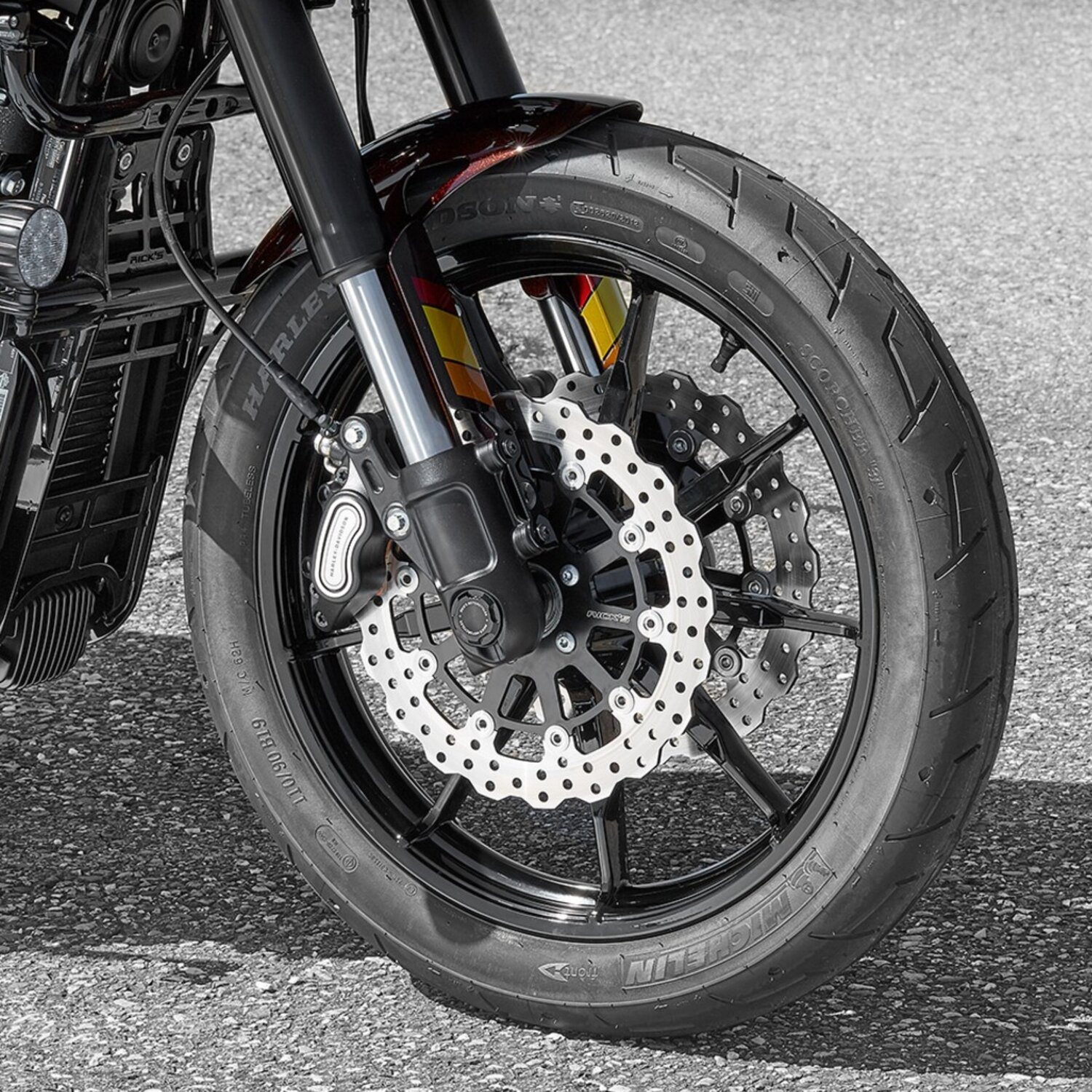

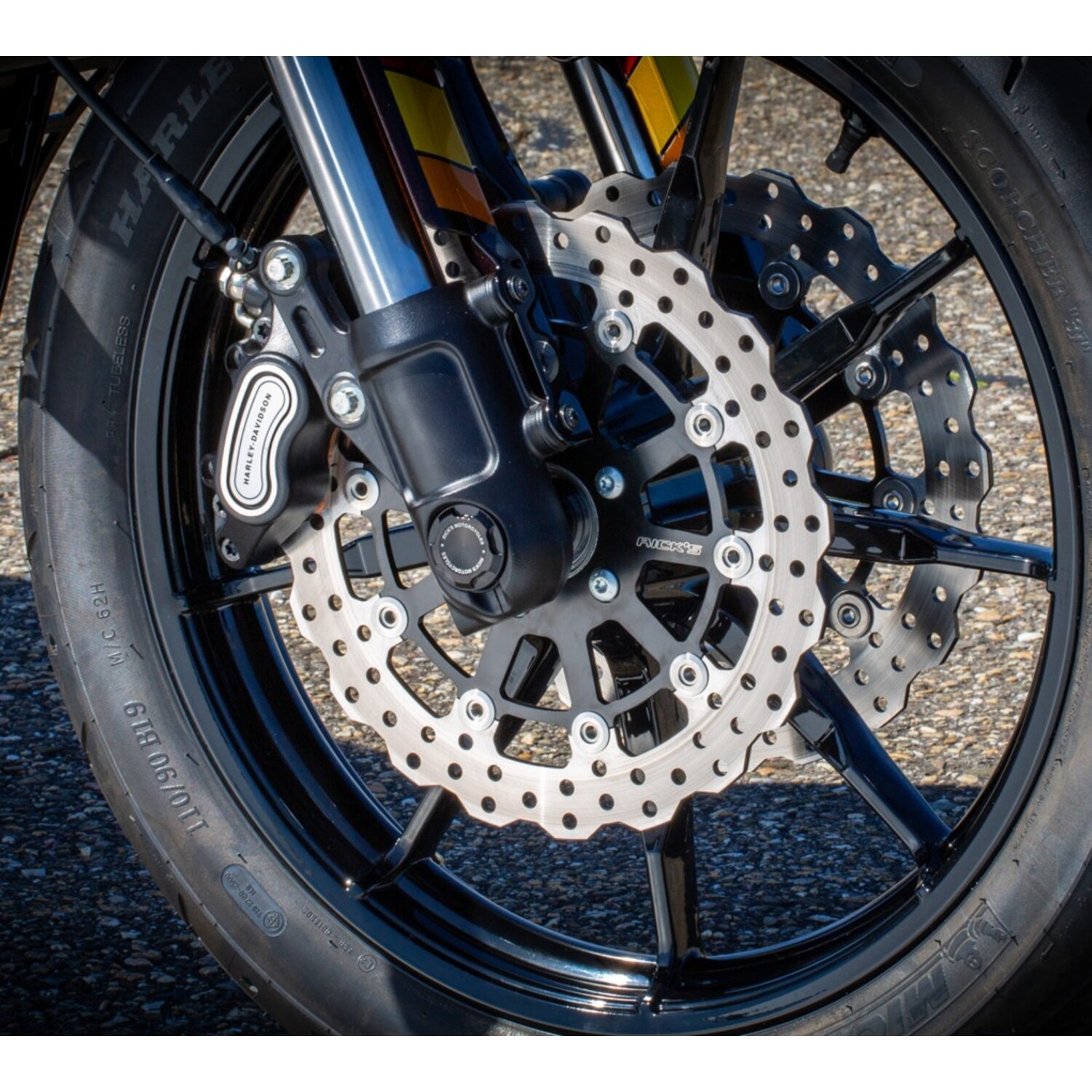

This front Wave brake disc, part of the Steve series, is an 11.5" (292mm) floated brake rotor manufactured from a special stainless steel alloy. The disc is heat treated to provide strong braking capability combined with high wear resistance. It is laser-cut for precision and cross-ground for a perfectly flat braking surface, and it is optimized for use with OEM radial calipers.

Key Features

• Floated rotor design
• Special stainless steel alloy construction
• Heat treated for braking capability and wear resistance
• Laser-cut for precision
• Cross-ground for a flat surface
• Optimized for OEM radial calipers
• Counterbored mounting holes with 5/16" inner sleeves

Specifications

• Diameter: 11.5" / 292mm
• Inner diameter (I.D.): 56.3mm
• Mounting hole diameter: 8.7mm (5/16"), counterbored
• Mounting hole diameter without sleeves: 3/8" (rear use)
• Bolt circle diameter: 3.25"
• Mount style: B
• Material: Stainless steel alloy, heat treated
• OEM cross-reference: 44156-00, 44136-00

Usage & Care Tips

• For pre-2000 models, fit a 56.3mm to 50mm I.D. reduction ring
• Remove the 5/16" inner sleeves to open the mounting holes to 3/8" for rear fitment
• Confirm approval type and validity for your specific bike model and year with your local MCS dealer or the MCS sales department, per the test report

Fitment

• HD: Various models with 3.25" bolt circle diameter, 2000-2026
